High stability SC-cut OCXO in a chassis-mount housing, 70 x 50 x 40 mmLow phase noise, short-term stability &lt;2x10-12 at 1 sTemperature stability down to 1 ppb, ageing below 0.5 ppb per daySine wave or HCMOS/TTL, optional SMA or BNC output and alarm output, 5 to 24 V supply

QL720

High stability SC-cut OCXO in a hermetically sealed 50 x 50 mm packageLow phase noise, short-term stability &lt;2x10-12 at 1 sTemperature stability available below 1 ppb, ageing below 0.5 ppb per day5 to 100 MHz, sine wave or HCMOS/TTL output, single +5 to +18 V supply

QL703

High stability SC-cut OCXO in a hermetically sealed 36.1 x 27.2 x 15 mm packageLow phase noise, short-term stability &lt;2x10-12 at 1 sTemperature stability down to 1 ppb, ageing below 0.5 ppb per day5 to 100 MHz, sine wave or HCMOS/TTL output, single +5 to +15 V supply

QL701

OEM 1PPS timing module that disciplines an OCXO or rubidium oscillator3-state Kalman filter, 1PPS time tag resolution 200 ps, jitter &lt;1 ns rms10 MHz and 1PPS outputs, fast lock to GPS, holdover on 1PPS failureCompact 25 x 25 x 5 mm PCB module

A6-1PPS

CPT atomic clock (coherent population trapping), 10 MHz HCMOS outputLow power consumption below 1.6 W, +3.3 V DC supplyAccuracy ≤5x10-11, external 1PPS synchronisation, 1PPS outputMiniature 12-pin DIL package, 45 x 36 x 15 mm, under 45 g

E10-CPT

High performance OEM rubidium oscillator, 10 MHz outputShort-term stability 1.5x10-12 at 100 s, ageing 3x10-12 per day3 year warranty, 24 V DC, 13 W class power consumptionFits 1U case, simple integration into systems

A10-HPRO

Low noise rubidium oscillator module with active noise filter, 5 to 100 MHzPhase noise -115 dBc at 1 Hz, short-term stability down to 6x10-13 at 1 sPhase-locks to external 1PPS, RS232 interface, 100x less drift than OCXOSub-miniature module for 1U or 2U cases, 2 year warranty

E10-LN

Sub-miniature rubidium atomic clock (SMAC), 10 MHz outputNo drift, high stability, 2 year warranty51 x 51 x 25 mm, under 150 g, 6 W at 12 V DCPCB mounted with OCXO-layout pins, no antenna needed

E10-MRX

Miniature rubidium oscillator frequency standard, 10 MHz outputNo drift, high stability, 2 year warrantyLow phase noise, RS232 interface, 1PPS I/O syncFits 1U case, low cost, simple system integration

E10-MRO

<ul><li>Dimensions: (25.4 x 22)mm, Height 10.50mm</li><li>Waveform: CMOS &amp; Sine</li><li>Supply: +3.3V, +5V, +10V or +12V</li><li>Temp stability: ±10ppb -20 +70°C</li></ul>

OS560-150

<ul>
 <li>DIL TCXO resist weld</li>
 <li>from ±1.0ppm(-10 +60)°C</li>
</ul>

TA265 - 8.5

<ul>
 <li>(38.1 x 38.1)mm, Height 13mm</li>
 <li>Wide temperature range precision OCXO</li>
 <li>high shock and vibration</li>
 <li>±0.01ppm(-40 +85)°C</li>
</ul>

OS364 - 13

<ul>
 <li>TCXO, hermetically sealed case, (20x 20 x 10)mm, wide frequency range, from ±0.5ppm(0 +50)°C</li>
</ul>

TA400 - 10

<ul>
 <li>(36 x 26.5)mm, Height 15mm</li>
 <li>20 year specification, precision OCXO</li>
 <li>SC cut, stratum 3E compliant</li>
</ul>

OS3E936 - 15

<ul>
 <li>smd TCXO, (20 x 20 x 10)mm, wide frequency range,</li>
 <li>from ±0.5ppm(0 +50)°C AT cut</li>
</ul>

TA560 - 10

<ul>
 <li>(36 x 26.5)mm, Height 15mm</li>
 <li>precision OCXO</li>
 <li>±0.05ppm(0 +50)°C, AT cut</li>
 <li>wide frequency range</li>
</ul>

OA936 - 15

<ul>
 <li>TCXO, 5 pin, very wide frequency range,</li>
 <li>AT cut, (26 x 36 x 10)mm,</li>
 <li>from ±0.5ppm(0 +50)°C</li>
</ul>

TA936 - 10

<ul>
 <li>(36 x 26.5)mm, Height 15mm</li>
 <li>high precision OCXO</li>
 <li>±0.005ppm(0 +50)°C, SC cut</li>
</ul>

OS936 - 15

<ul>
 <li>VCXO, DIL resistance weld case,</li>
 <li>wide pulling range up to ±300ppm</li>
</ul>

V265 - 8.5

<ul><li>Dimensions: (25.4 x 22)mm, Height 10.50mm</li><li>Waveform: SMD OCXO</li><li>Supply: Supply +3.3V, +5V, +10V or +12V</li><li>Stability: Stability ±10ppb -20 +70°C</li></ul>

Precision timing products for demanding engineering systems.

Choose a subcategory

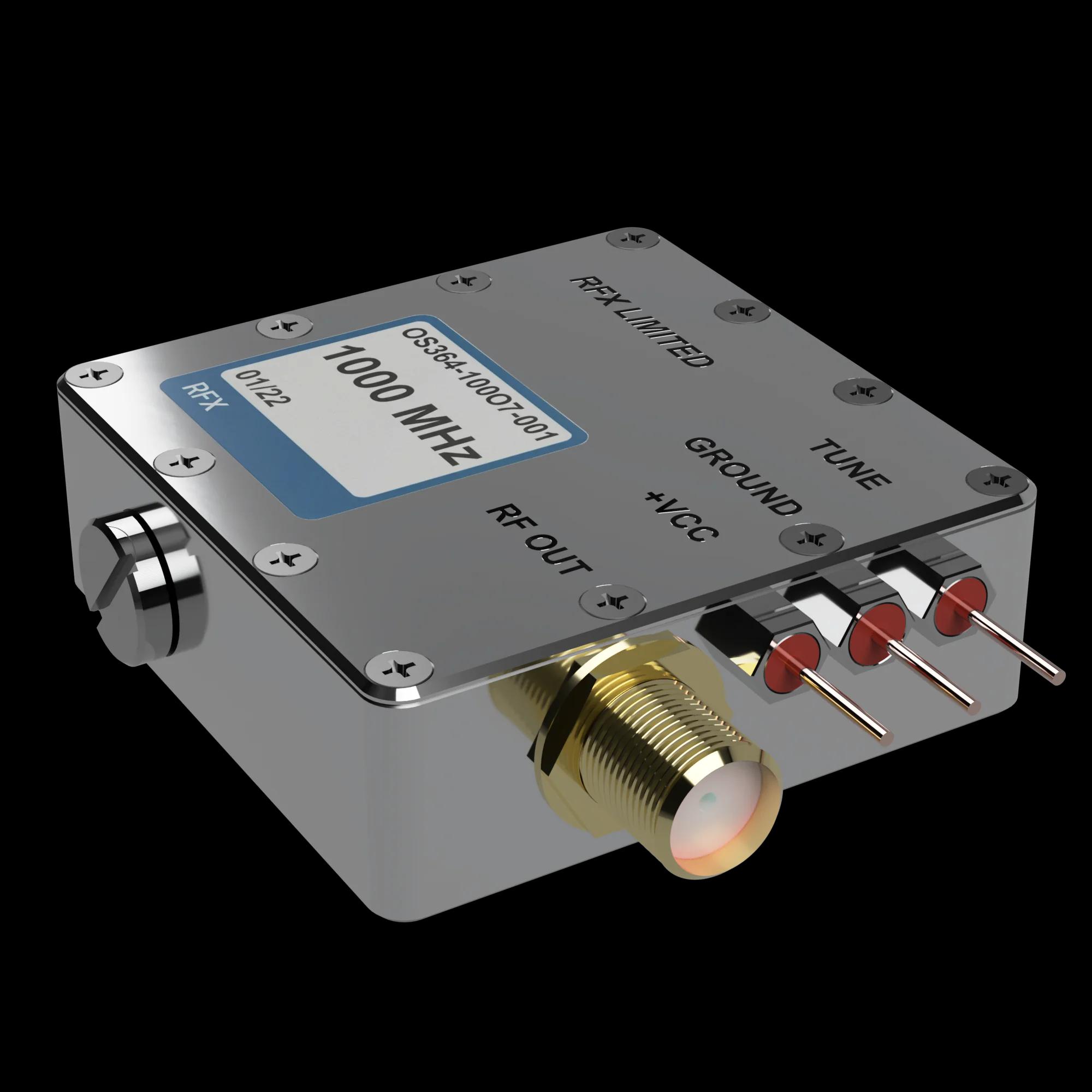

OCXO

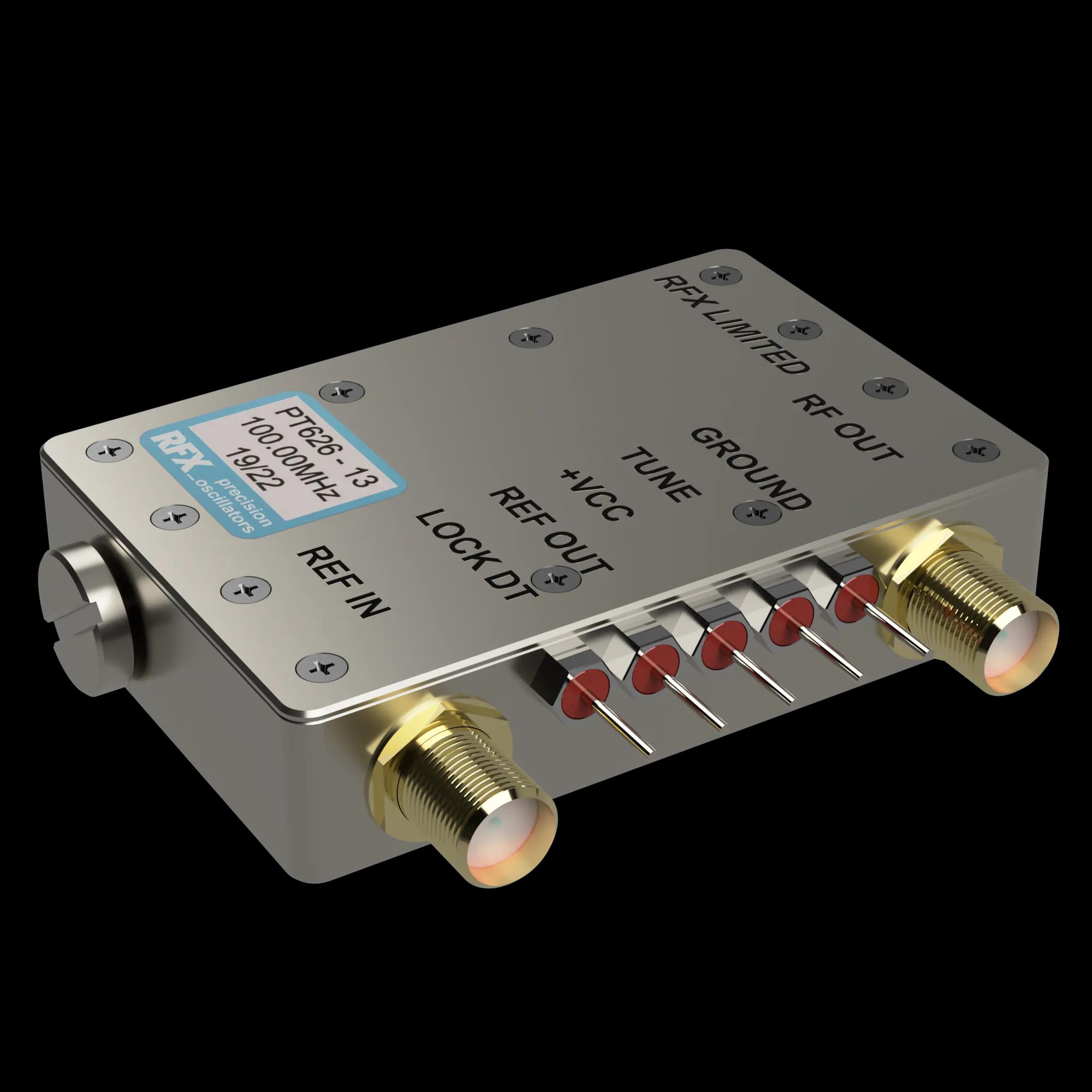

PLO

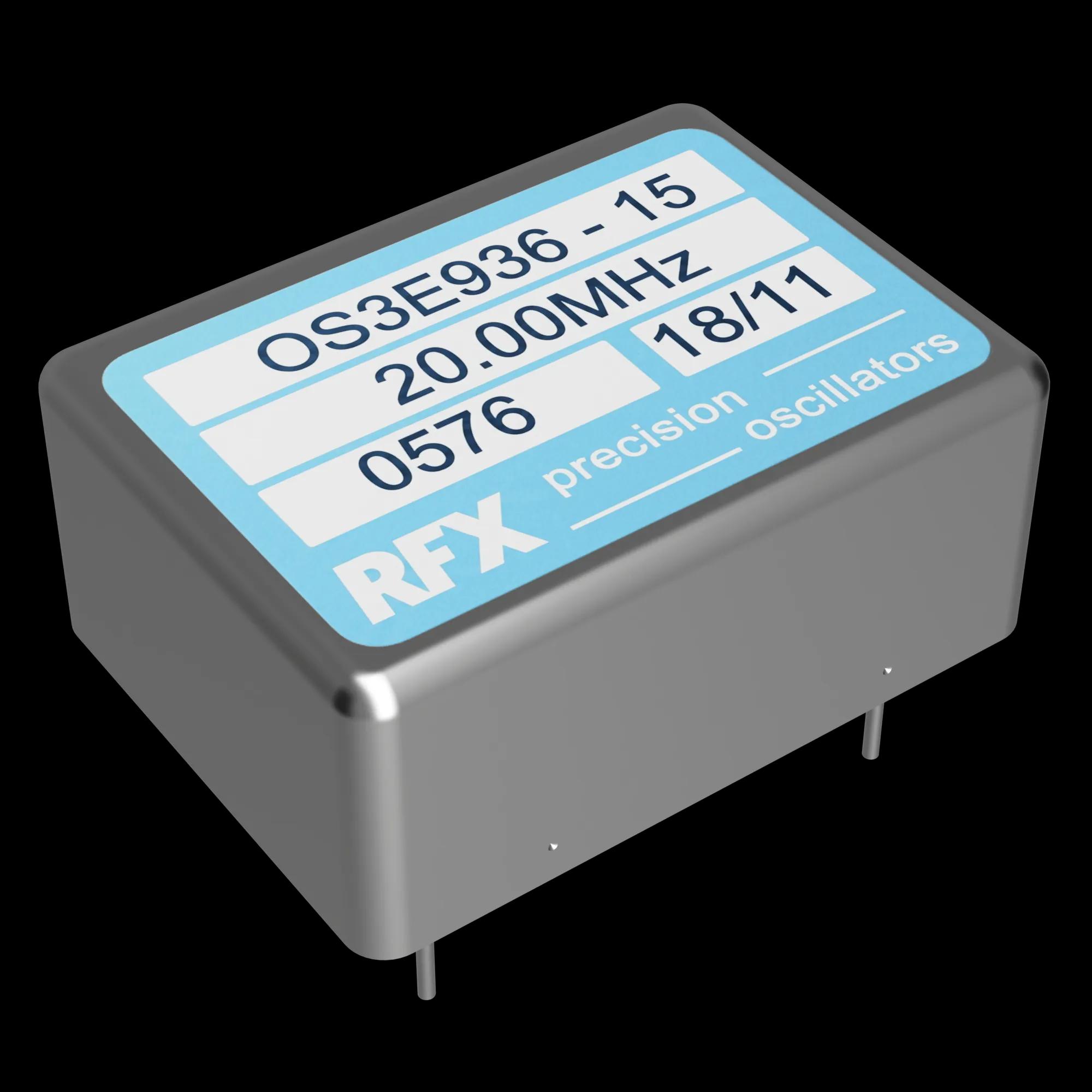

PPS disciplined OCXO

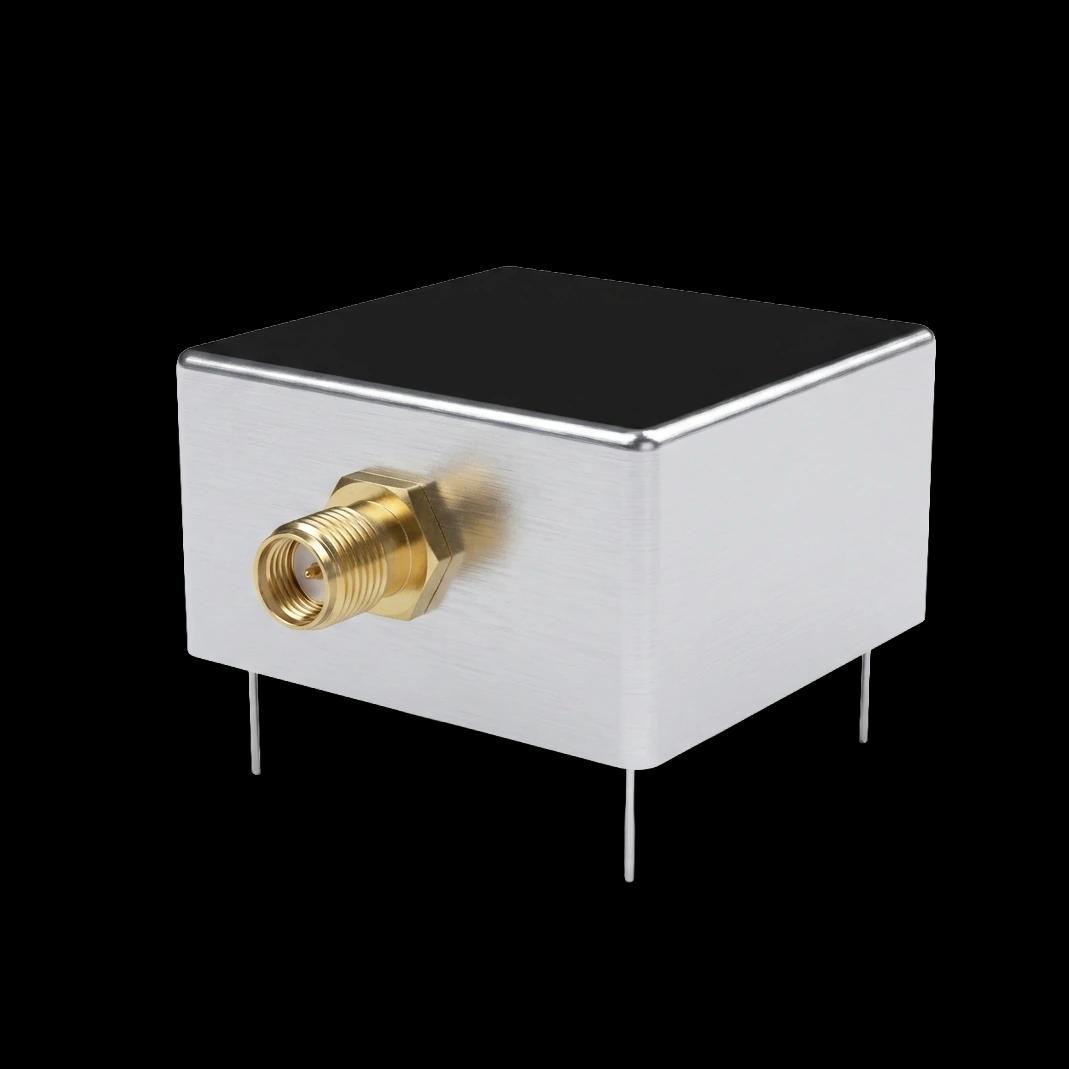

Rubidium Oscillator

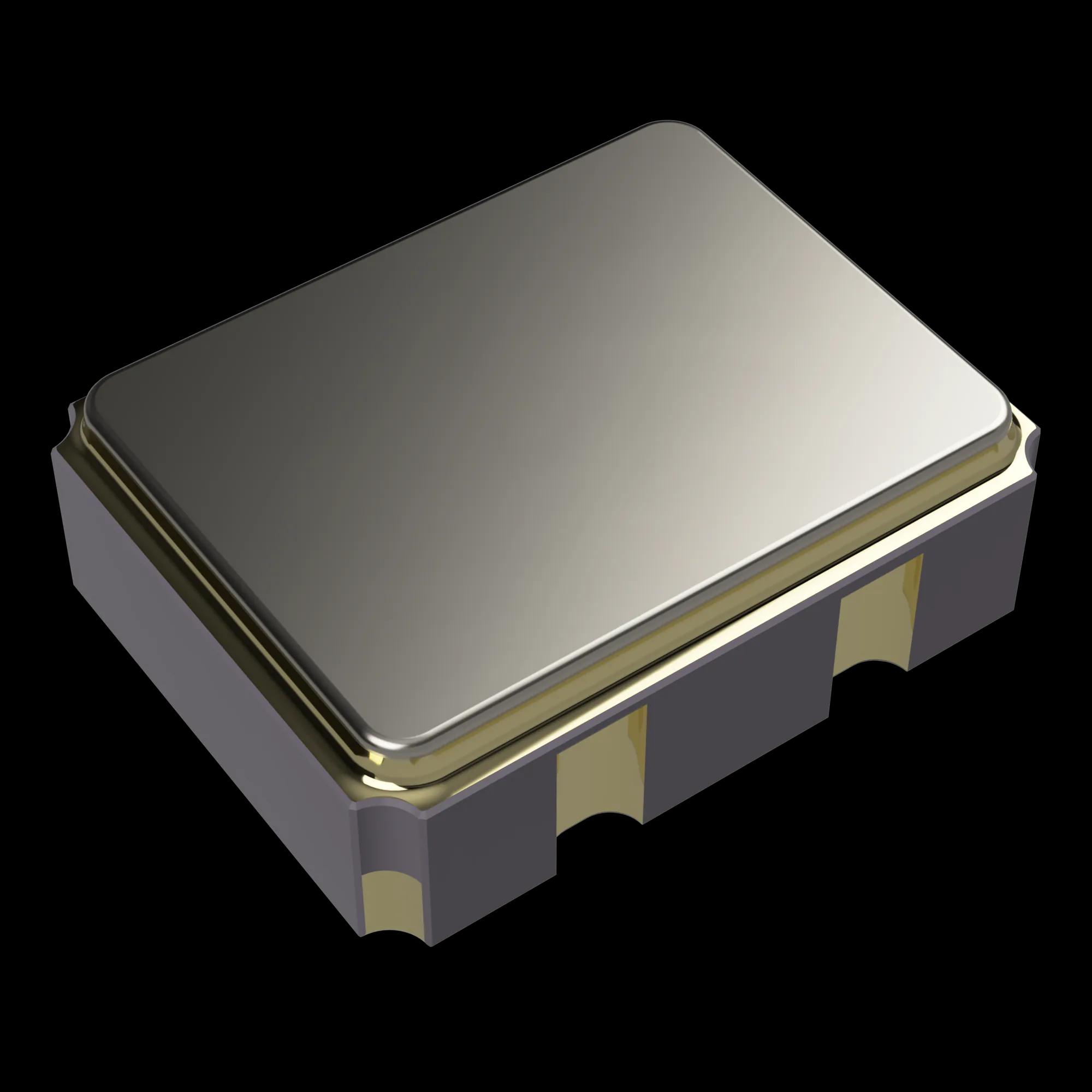

TCXO

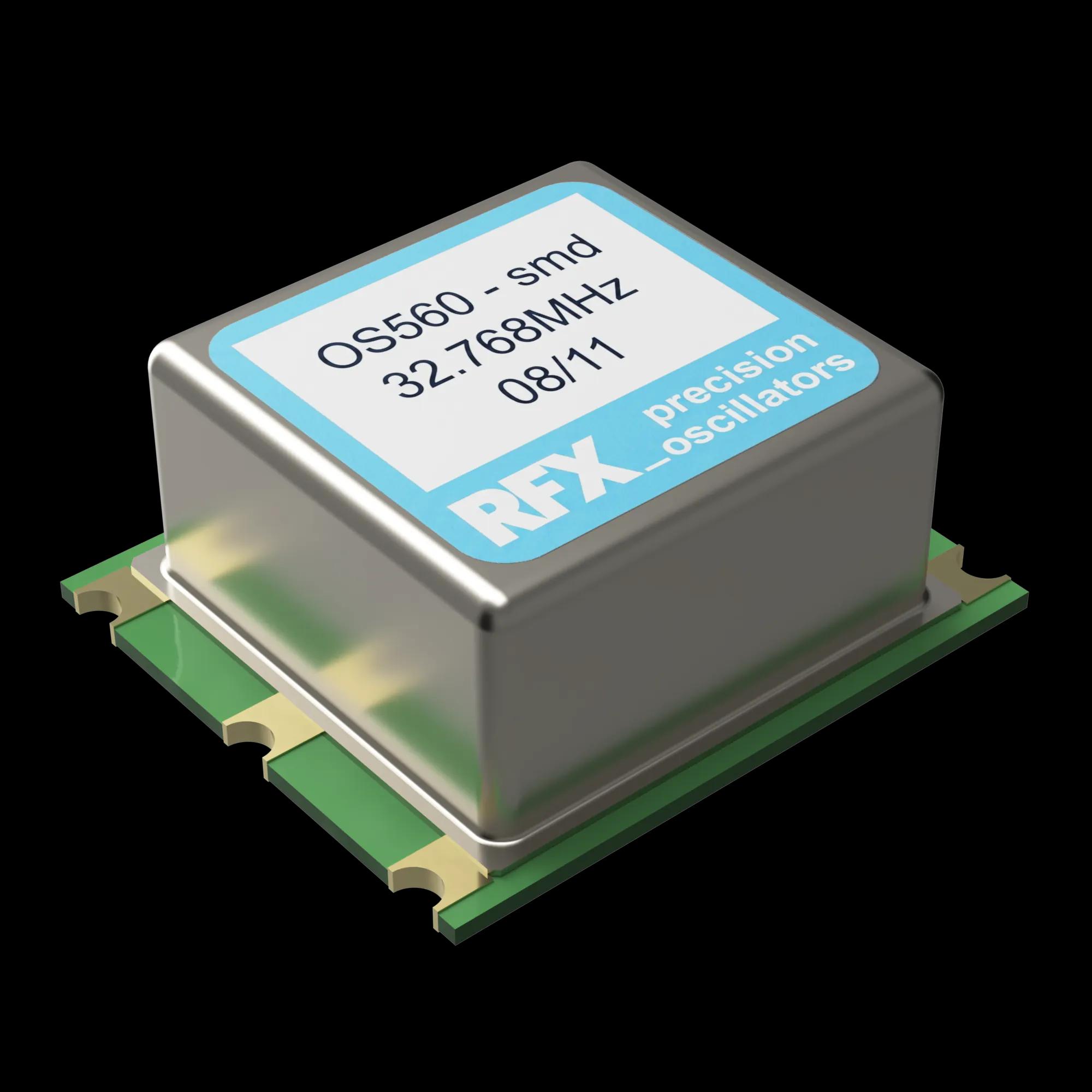

VCXO
